Tilt & Turn Windows

Wood-Alu Range

Tilt & Turn Windows

Specifications

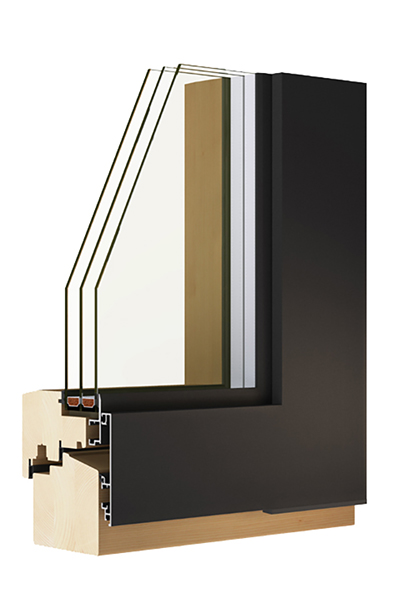

  • Internal IV 68mm Victorian Ash frame, low VOC spray-painted or stained in the colour of your choice

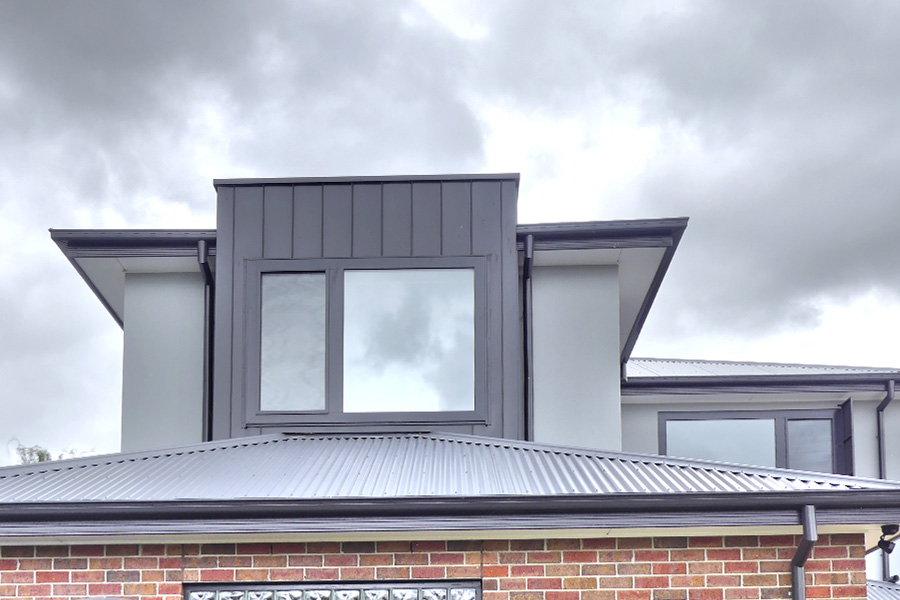

  • External aluminium cladding powder-coated in a wide range of colours
  • Timber and cladding separated by 3mm clip system to stop condensation and subsequent rot
  • Triple glazed 2x up to 16mm or double glazed 1x up to 22mm argon filled gap
  • Choice of glass combinations
  • Custom made
  • German tilt & turn hardware fittings
  • Seals and multi-point locking
  • Childproof available
  • Suited for bushfire areas up to and including BAL-29, and for Passive House

Size:

  • Minimum 600mm height x 420mm width
  • Width up to 1400mm at min height of 1500mm, max 2100mm
  • Height up to 2700mm at max width of 1000mm

WERS energy rating: from a very low 1.0

How Tilt and Turn works

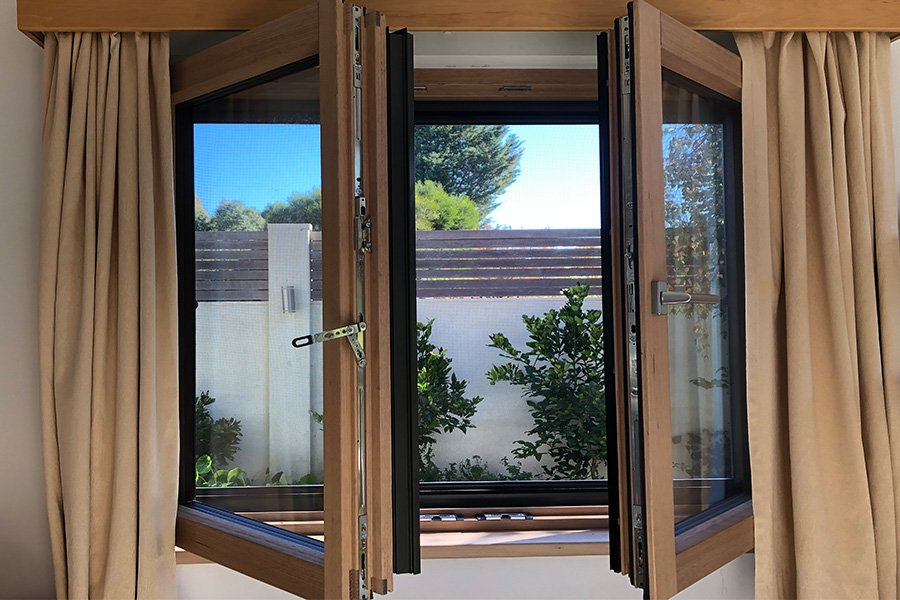

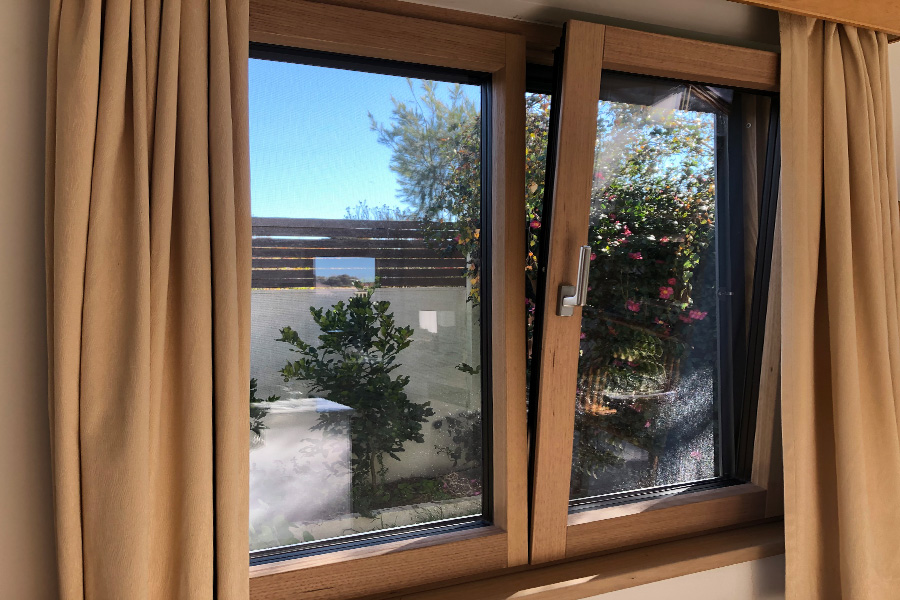

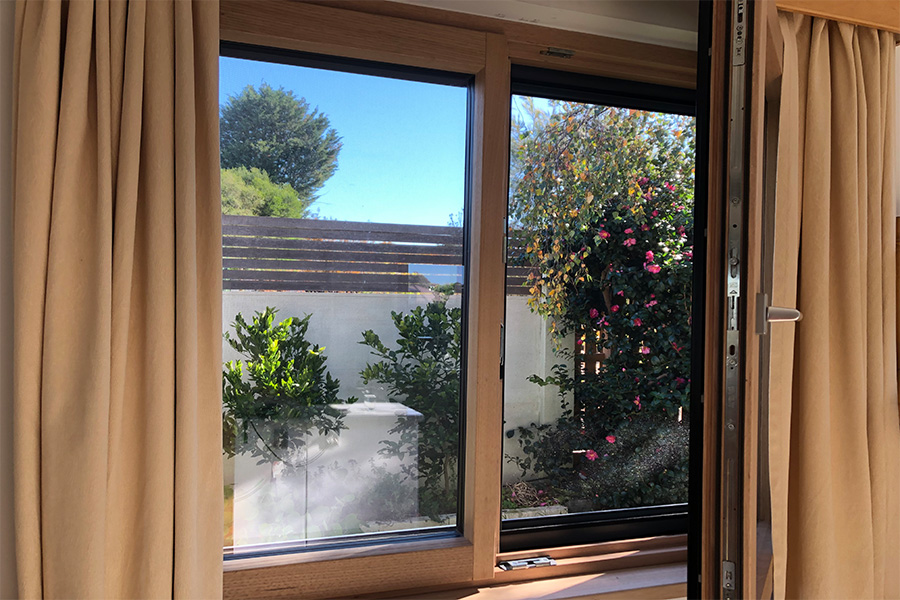

The window (or door) will swing inward when opened in the turn position - alternatively, a sophisticated hinging mechanism allow it to open inward at the top (tilt). Both actions are activated by the turn of the handle, which controls all the mechanics within the frame.
