Lift-Slide Doors

Wood-Alu Range

Lift-slide-doors

Specifications

  • Internal IV68mm timber frame, low VOC spray-painted or stained in the colour of your choice
  • External aluminium cladding powder-coated in a wide range of colours
  • Timber and cladding separated by 3mm clip system to stop condensation and subsequent rot
  • Triple glazed 2x up to 16mm or double glazed 1x up to 22mm argon filled gap
  • Choice of glass combinations
  • Custom made

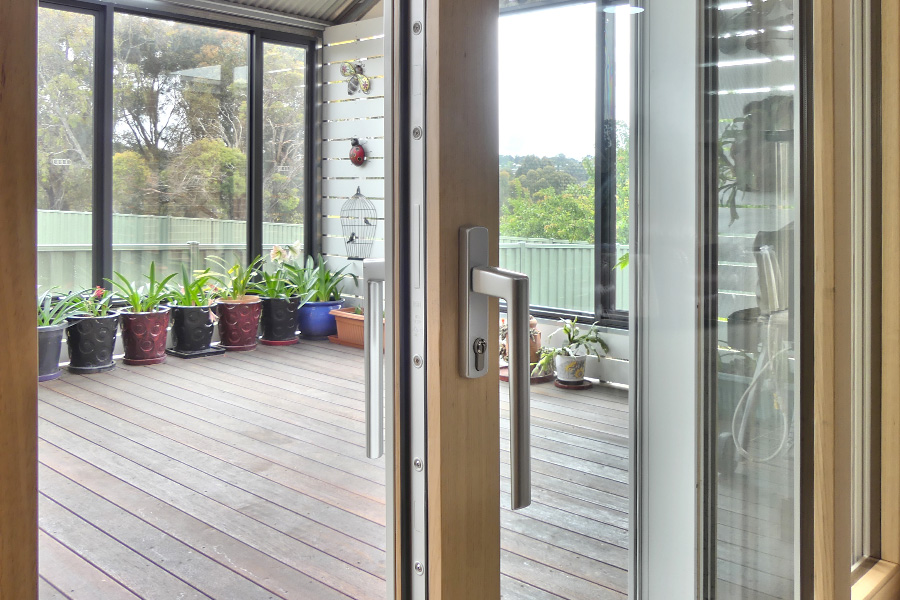

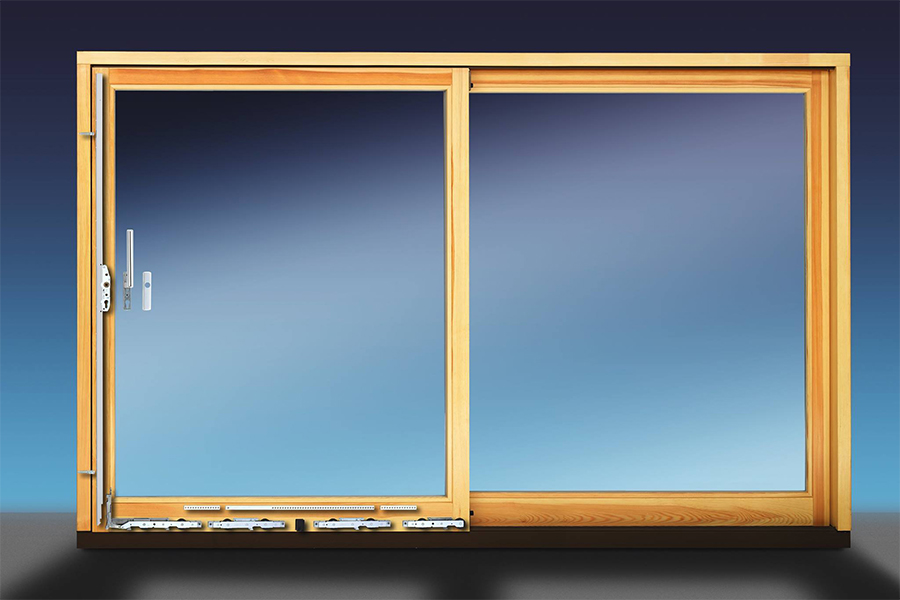

  • German lift and slide hardware, multi-point locking
  • Seals to eliminate drafts, night vent

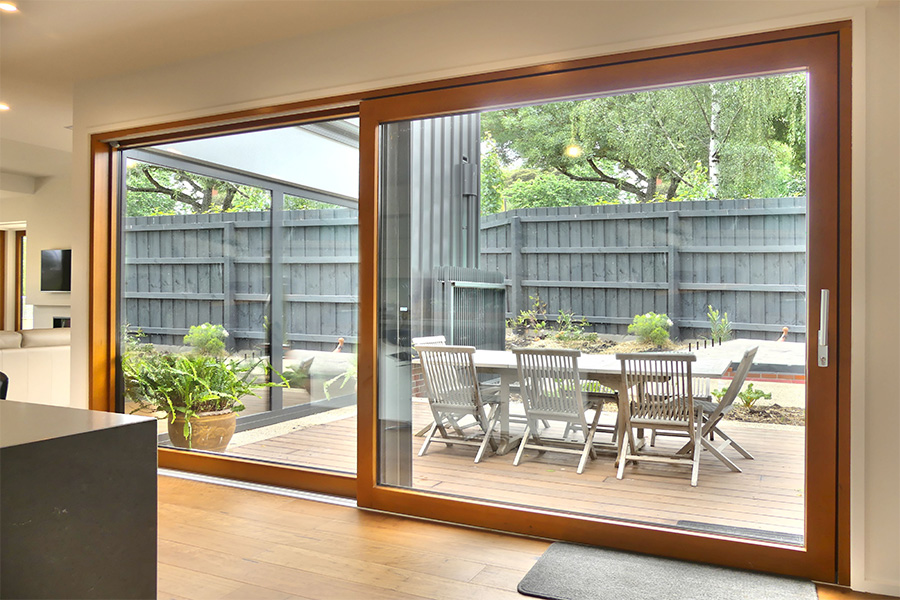

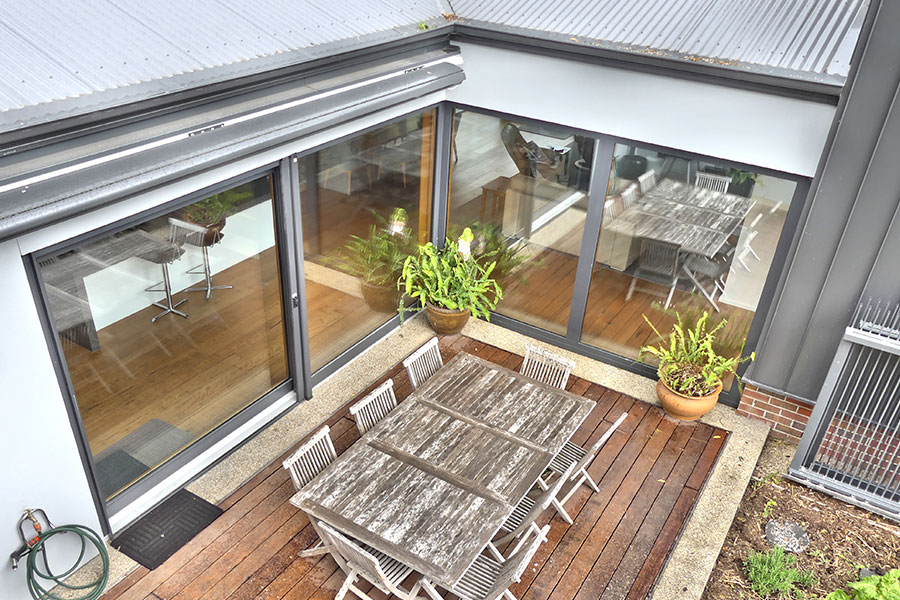

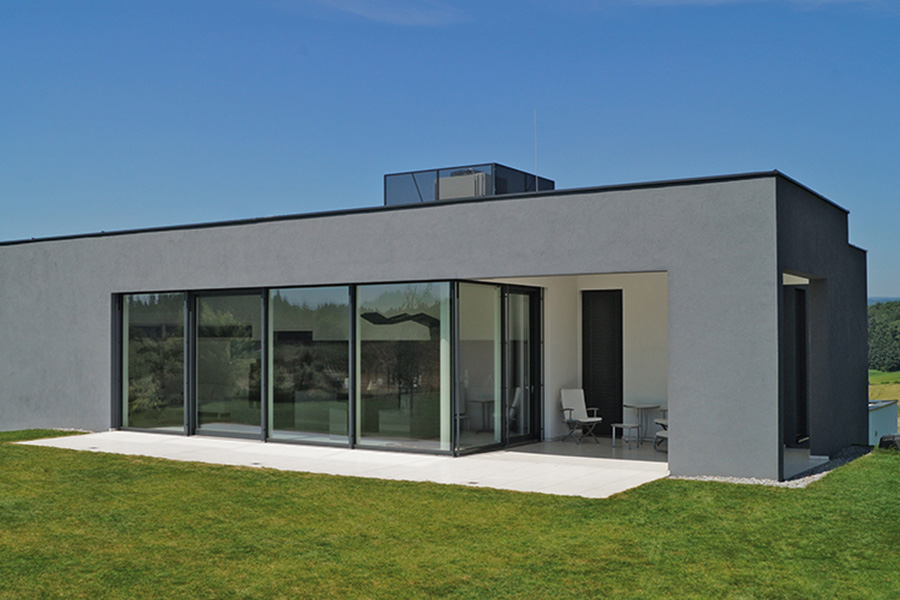

  • Available also as giant sliders or corner sliders
  • Suited for bushfire areas up to and including BAL-29, and for Passive House

Size:

  • Weight up to 400kg per leaf
  • Slider width up to 2.4m at a maximum of 6m2 per leaf
  • Height up to 2.7m at a maximum of 6m2 per leaf
  • Overall width by request

WERS energy rating: from a very low 1.0

Ultimate strength N5/C3

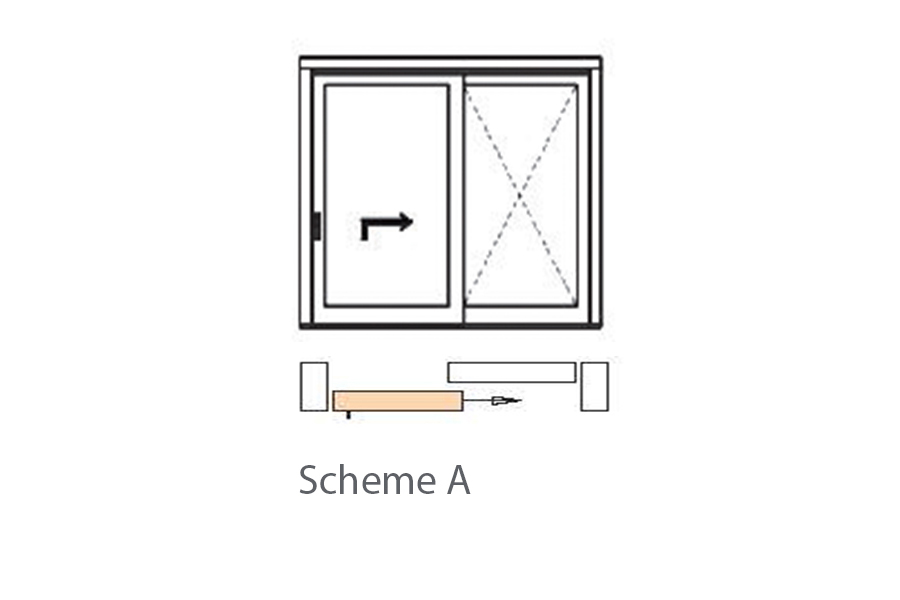

Door Configurations

Technically advanced lift-slide sliding doors are available in a variety of configurations:
