Clerestory/Tilt Windows

Wood-Alu Range

Clerestory-Window-motorised

Specifications

  • Internal IV 68mm timber frame, low VOC spray-painted or stained in the colour of your choice
  • External aluminium cladding powder-coated in a wide range of colours
  • Timber and cladding separated by 3mm clip system to stop condensation and subsequent rot
  • Triple glazed 2x up to 16mm or double glazed 1x up to 22mm argon filled gap
  • Choice of glass combinations
  • Custom made

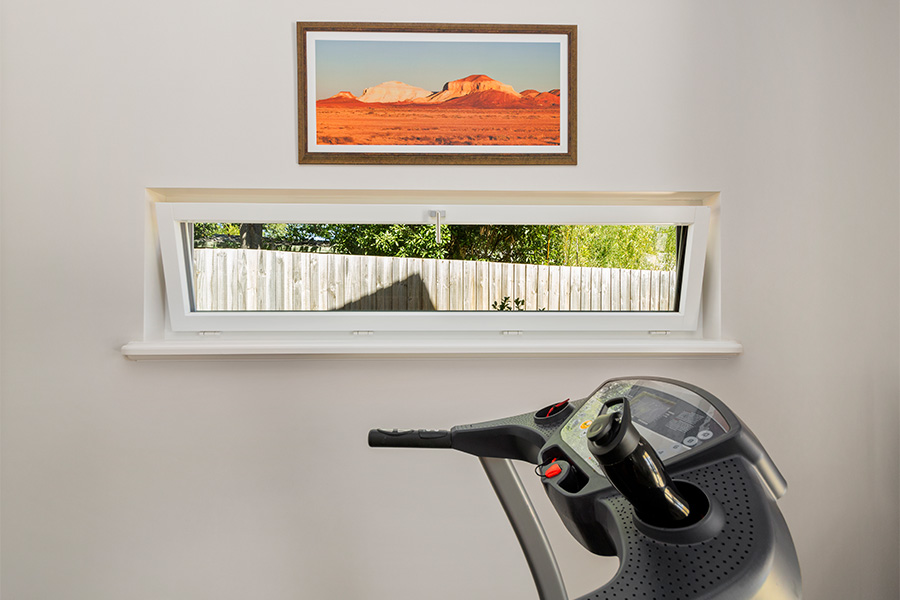

  • German tilt hardware, multi-point locking
  • Seals to eliminate drafts

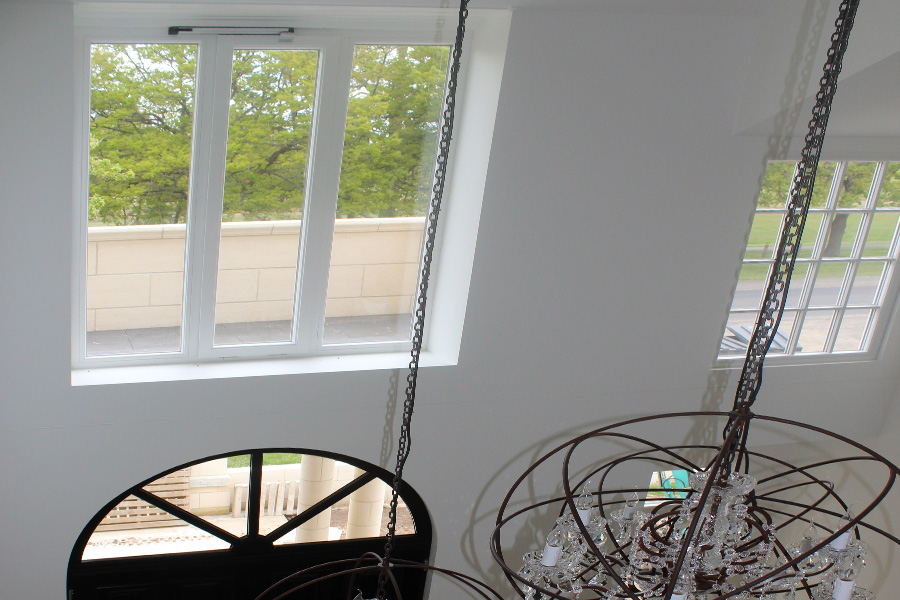

  • Can be automated with concealed chain drive
  • Suited for bushfire areas up to and including BAL-29, and for Passive House

Size:

  • Maximum width 3000mm at maximum height of 700mm
  • Height up to 2700mm at maximum width of 1500mm
  • Height minimum 450mm

WERS energy rating: from a very low 1.0
