Tilt & Turn Windows

Komfort+ Range

Tilt & Turn Windows

Specifications

  • Timber frame thickness IV 68mm
  • Pronounced joints
  • Double glazed with 1x 14-20mm airgap, depending on glass thickness
  • Choice of glass combinations
  • Komfort+: low VOC spray-painted or stained in the colour of your choice
  • Komfortline: primed and paint ready
  • German tilt & turn hardware, multi-point locking, partly surface mounted
  • Childproof available
  • Seals to eliminate drafts
  • Suited for bushfire areas up to and including BAL-29

Size:

  • Minimum 600mm height x 420mm width
  • Width up to 1200mm at min height of 1500mm, max 2100mm
  • Height up to 2400mm at max width of 1000mm

WERS energy rating: from a very low 1.8

Ultimate strength N6/C4

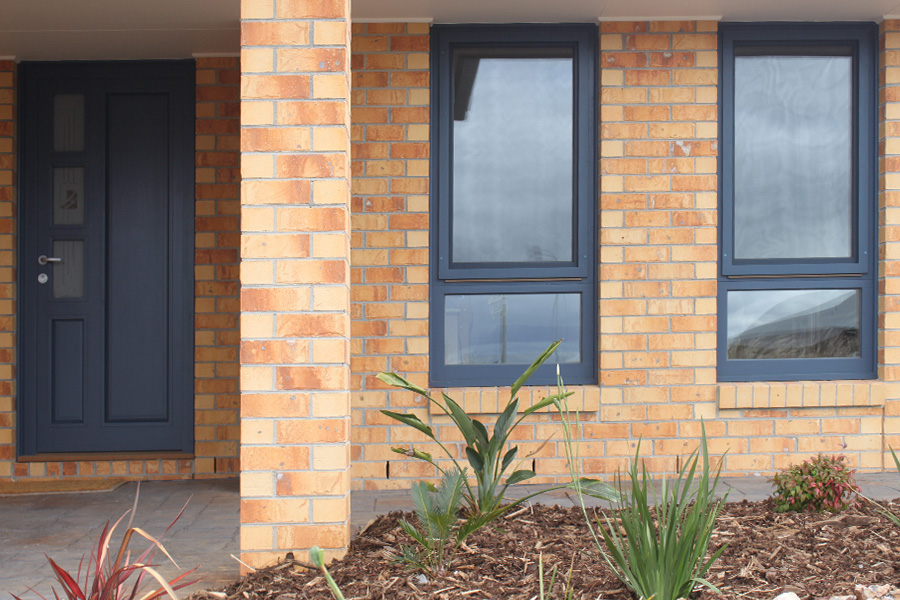

Tilt-and-turn-and-picture-windows

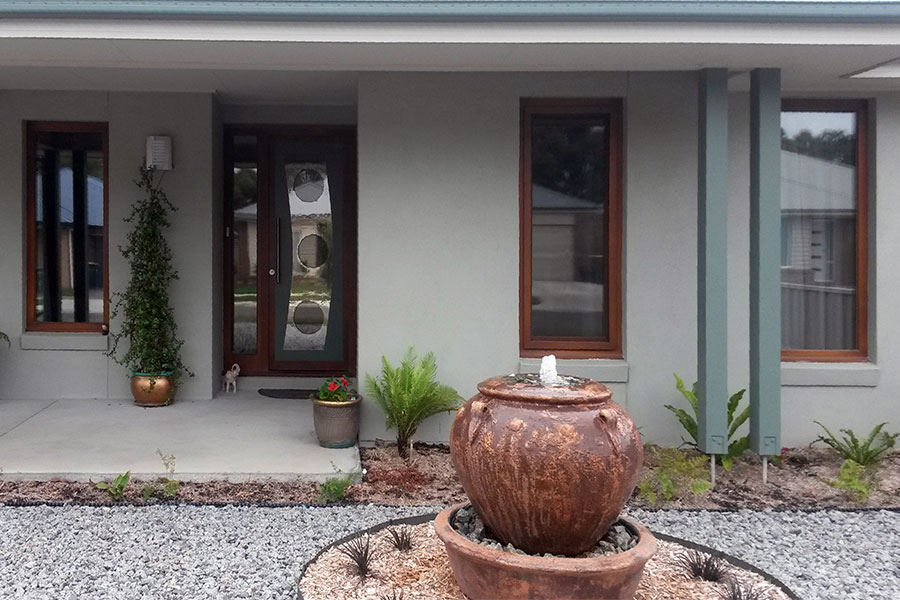

Tilt-and-turn-large
Tilt-and-turn-and-picture-windows

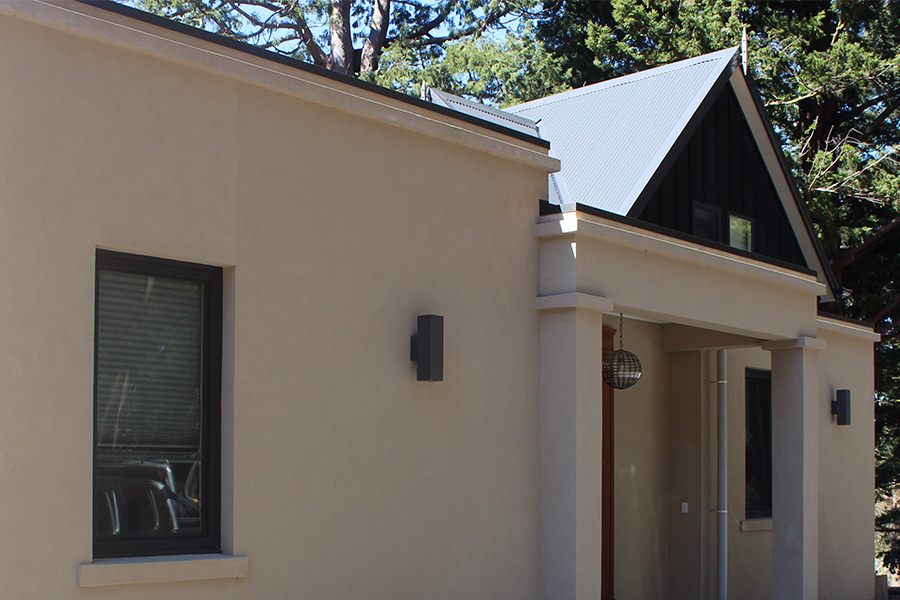

Tilt-and-turn-Single
Tilt-and-turn-and-fixed

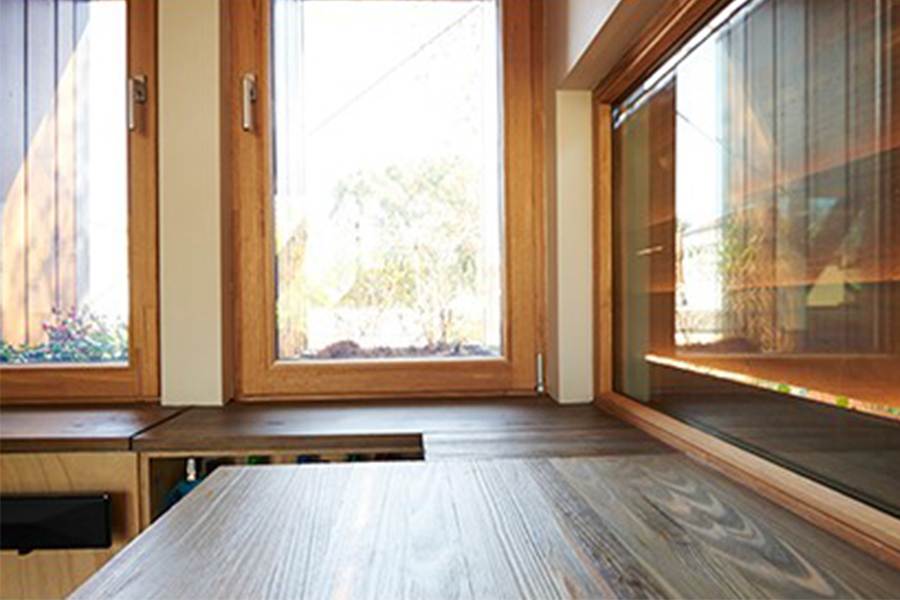

Tilt-and-turn windows with fixed

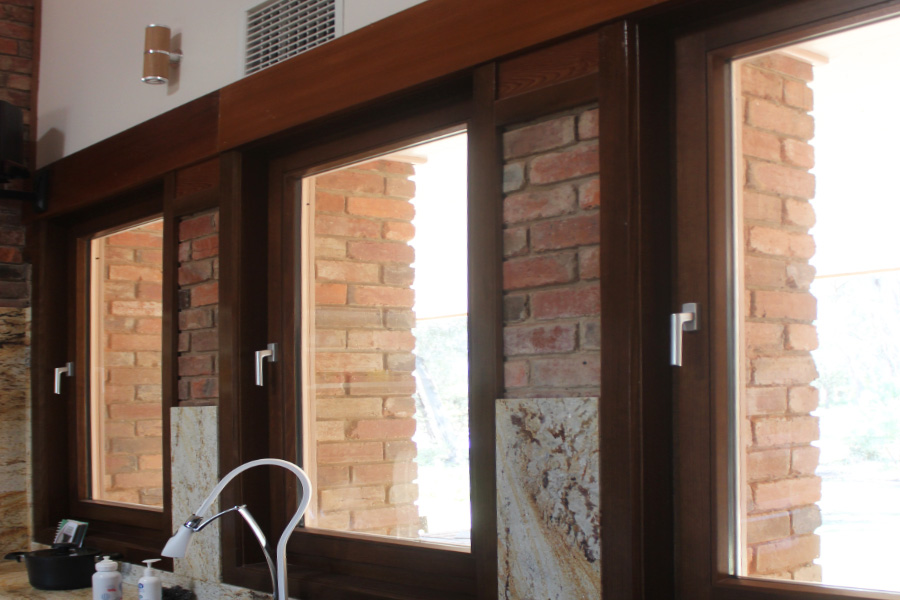

Tilt-and-turn windows

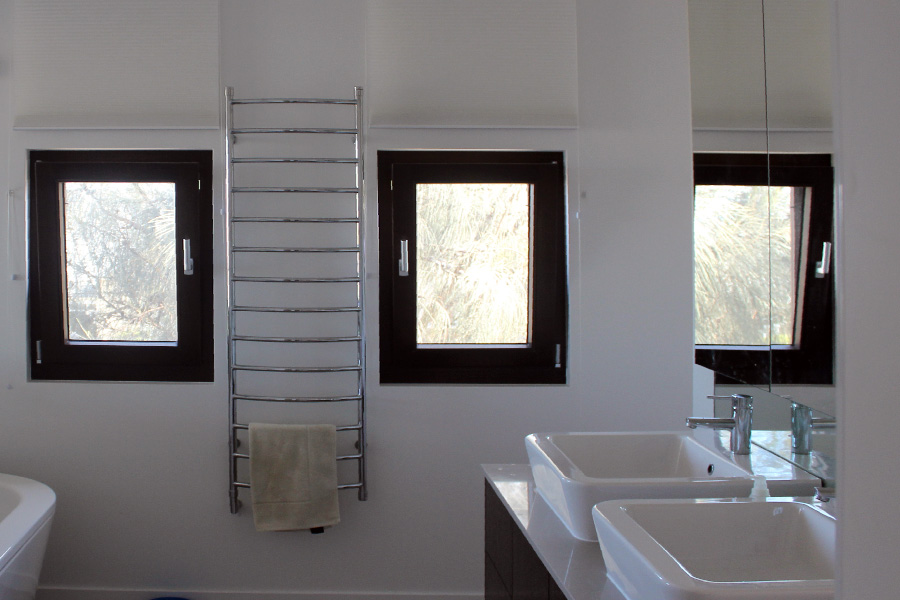

Tilt-and-turn windows

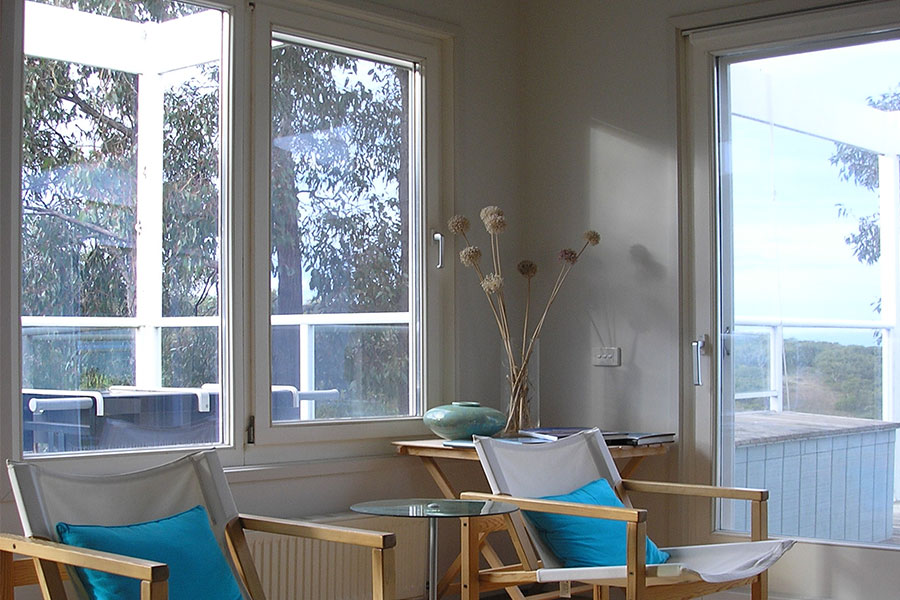

Tilt-and-turn window with fixed section
Tilt-and-turn windows

How tilt and turn works

The window (or door) will swing inward when opened in the turn position - alternatively, a sophisticated hinging mechanism allow it to open inward at the top (tilt). Both actions are activated by the turn of the handle, which controls all the mechanics within the frame.

Tilt-and-turn-closed
Tilt-and-turn-open-casement
Turn-and-turn-open-tilt
