Clerestory/Tilt Windows

Komfort+ Range

Clerestory-window-highlight

Specifications

  • Timber frame thickness IV 68mm
  • Pronounced joints
  • Double glazed with 1x 14-20mm airgap, depending on glass thickness
  • Choice of glass combinations
  • Komfort+: low VOC spray-painted or stained in the colour of your choice
  • Komfortline: primed and paint ready
  • German tilt hardware fittings
  • Seals and multi-point locking
  • Can be automated with concealed chain drive
  • Suited for bushfire areas up to and including BAL-29

Size:

  • Maximum width 2400mm at maximum height of 700mm
  • Height up to 2400mm at maximum width of 1500mm
  • Height minimum 450mm

WERS energy rating: from a very low 1.8

Varied use for clerestory/tilt windows

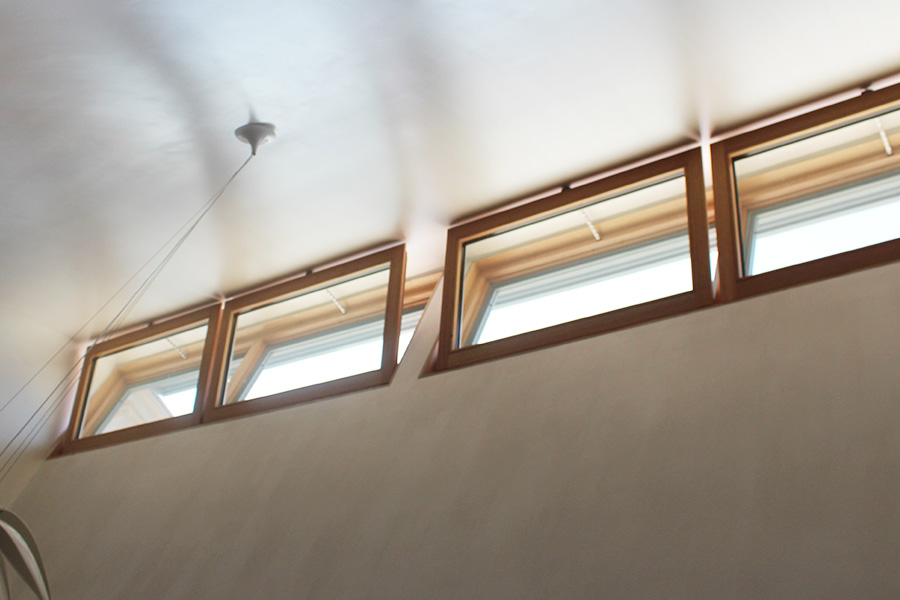

Clerestory/Highlight/Hopper/Tilt windows can be used individually, or above, below or on the side of picture windows for airflow. They are often horizontal but can also be vertical and fairly large. Motorisation is available for out of reach places with a concealed chain drive.

For more design inspiration please see Architectural Timber Clerestory-Tilt
