Tilt & Turn Windows

Architectural Timber Range

Tilt & Turn Windows

Specifications

  • IV 78mm timber frame, triple glazed with 2x 12-16mm argon filled gap
  • IV 68mm timber frame, double glazed with 1x 14-20mm argon filled gap
  • Choice of glass combinations
  • Custom made
  • Low VOC spray-painted or stained in the colour of your choice
  • German tilt & turn hardware, multi-point locking
  • Tilt inwards at the top like a hopper window, turn the handle to open inwards as a casement
  • Seals
  • Childproof available
  • Suited for low bushfire areas and Passive House

Size:

  • Minimum 600mm height x 420mm width
  • Width up to 1400mm at min height of 1500mm, max 2100mm
  • Height up to 2700mm at max width of 1000mm

WERS energy rating: from a very low 1.0

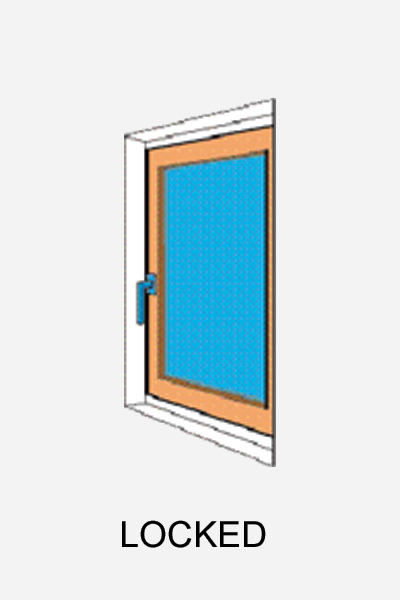

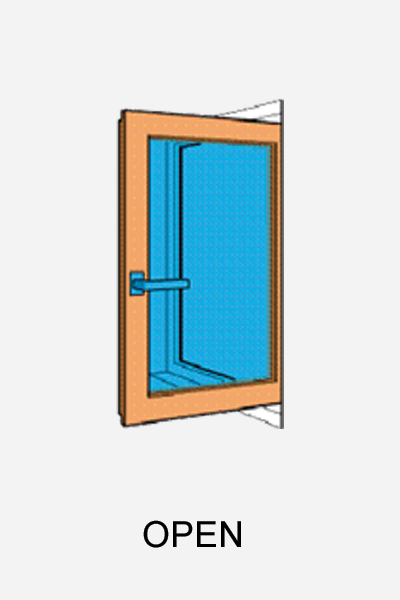

How Tilt and Turn works

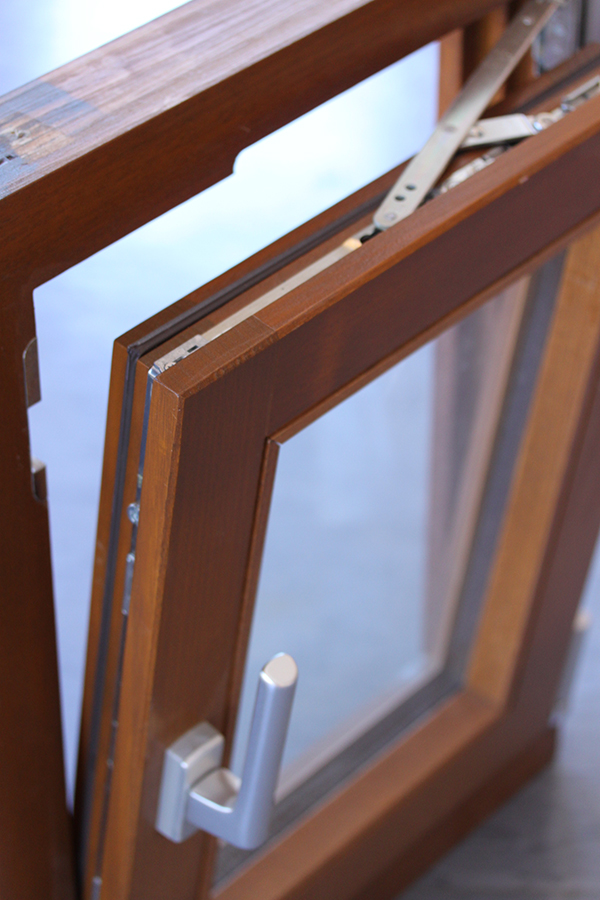

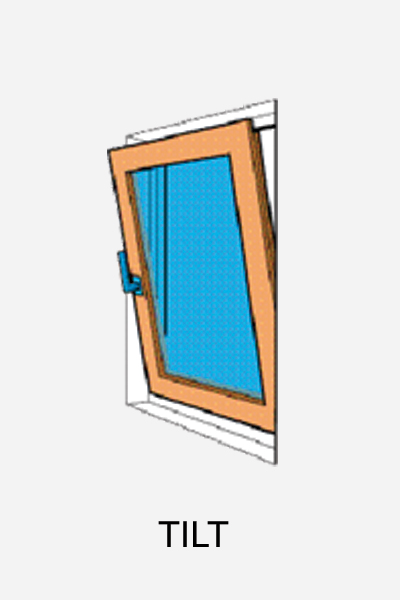

The window (or door) will swing inward when opened in the turn position - alternatively, a sophisticated hinging mechanism allow it to open inward at the top (tilt). Both actions are activated by the turn of the handle, which controls all the mechanics within the frame.
