Clerestory/Tilt Windows

Architectural Timber Range

Clerestory-window-highlight

Specifications

  • IV 78mm timber frame, triple glazed with 2x 12-16mm argon filled gap
  • IV 68mm timber frame, double glazed with 1x 14-20mm argon filled gap
  • Choice of glass combinations
  • Custom made
  • Low VOC spray-painted or stained in the colour of your choice
  • German tilt hardware fittings
  • Seals and multi-point locking
  • Can be automated with concealed chain drive
  • Suited for low bushfire areas and Passive House

Size:

  • Maximum width 3000mm at maximum height of 700mm
  • Height up to 2700mm at maximum width of 1500mm
  • Height minimum 450mm

WERS energy rating: from a very low 1.0

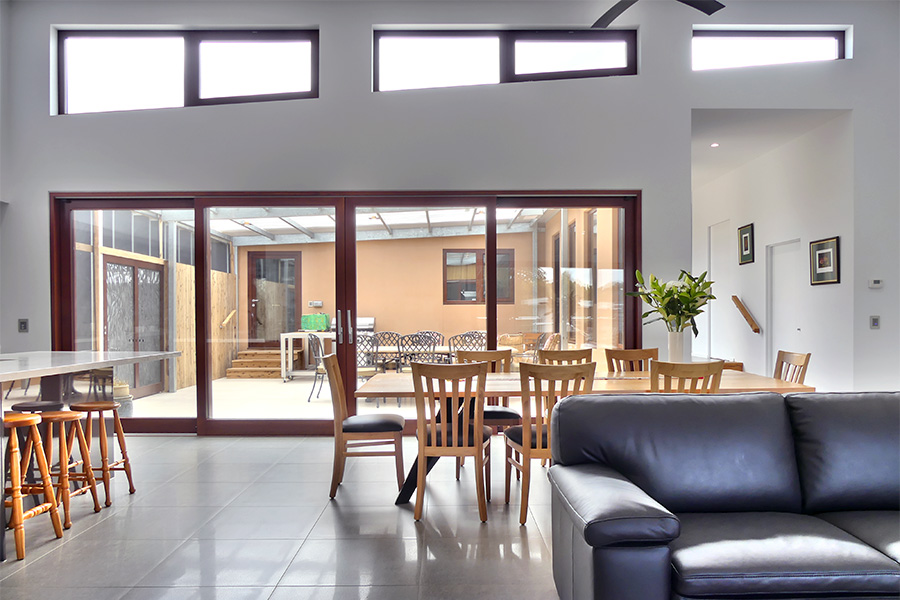

Clerestory-tilt-shaped-motorised

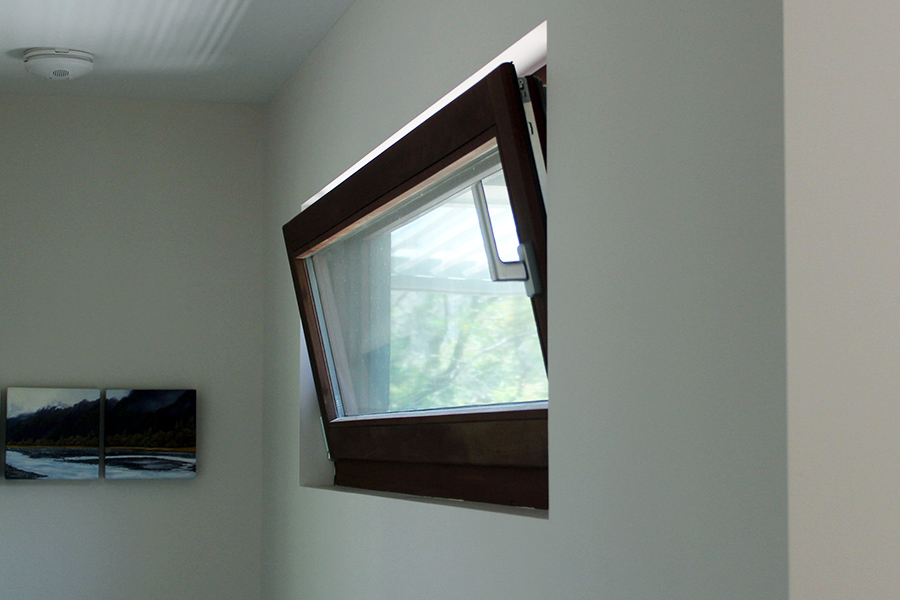

Clerestory-window
Clerestory-window_with-double-sliding-doors
Clerestory-window-skylight

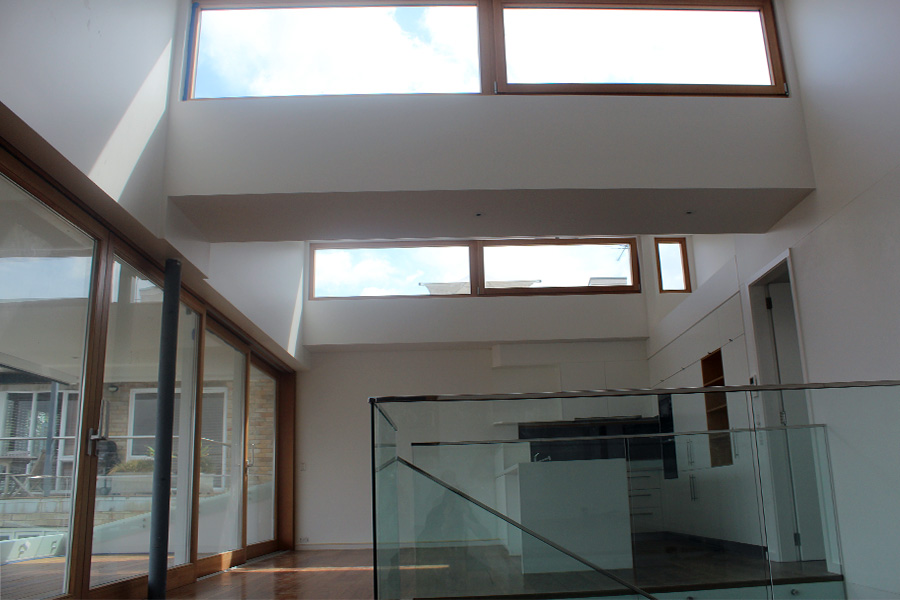

Clerestory-windows_with-sliding-doors

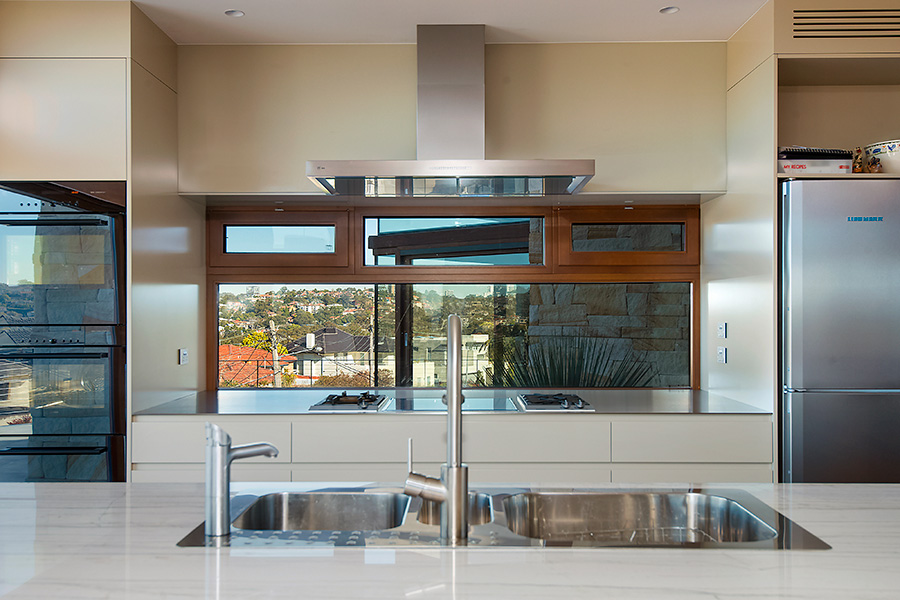

Clerestory-windows_kitchen
Tilt-window_splashback
Clerestory-with-chain-drive

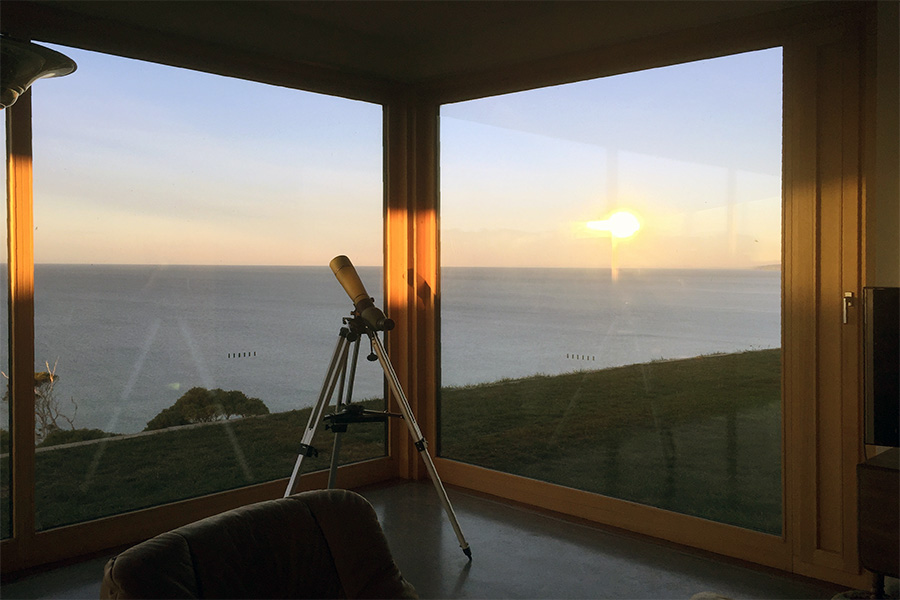

Narrow-window-on-right-of-picture-windows-closed

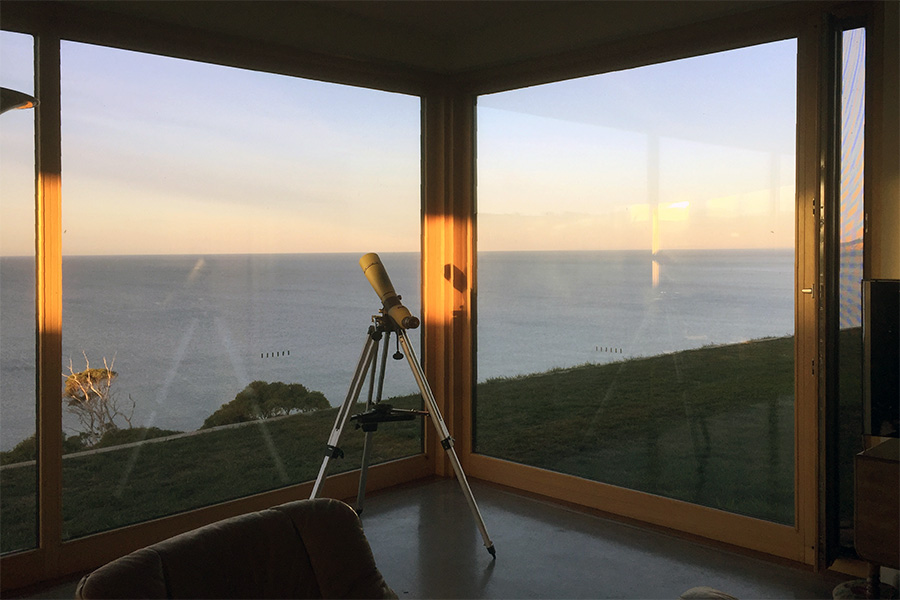

Narrow-window-on-right-of-picture-windows-open
Tilt-window-narrow-next-to-picture-window

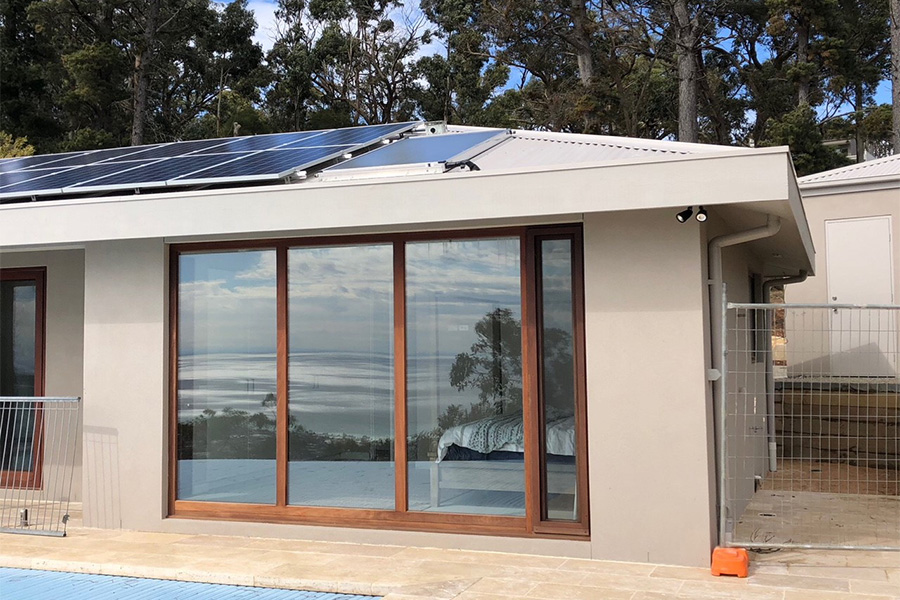

Tilt-window-narrow

Varied use for clerestory/tilt windows

Clerestory/Highlight/Hopper/Tilt windows can be used individually, or above, below or on the side of picture windows for airflow. They are often horizontal but can also be vertical and fairly large. Motorisation is available for out of reach places with a concealed chain drive.

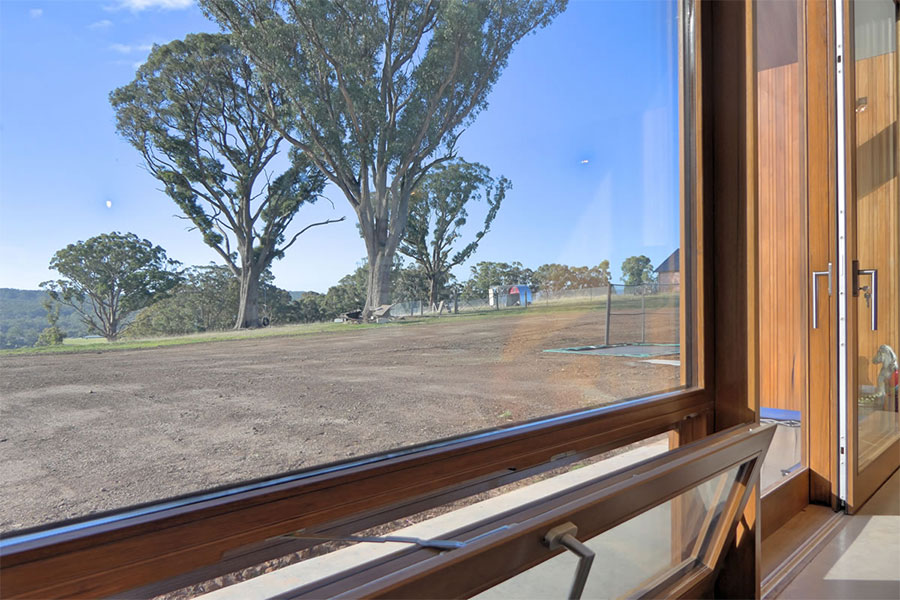

Tilt-window_airflow

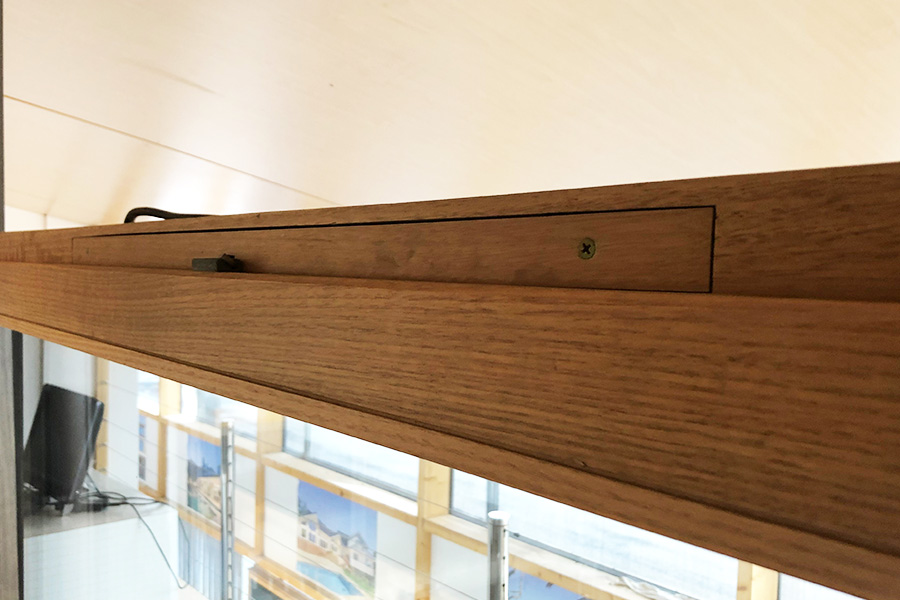

Concealed-chain-drive
