Bi-fold Doors

Architectural Timber

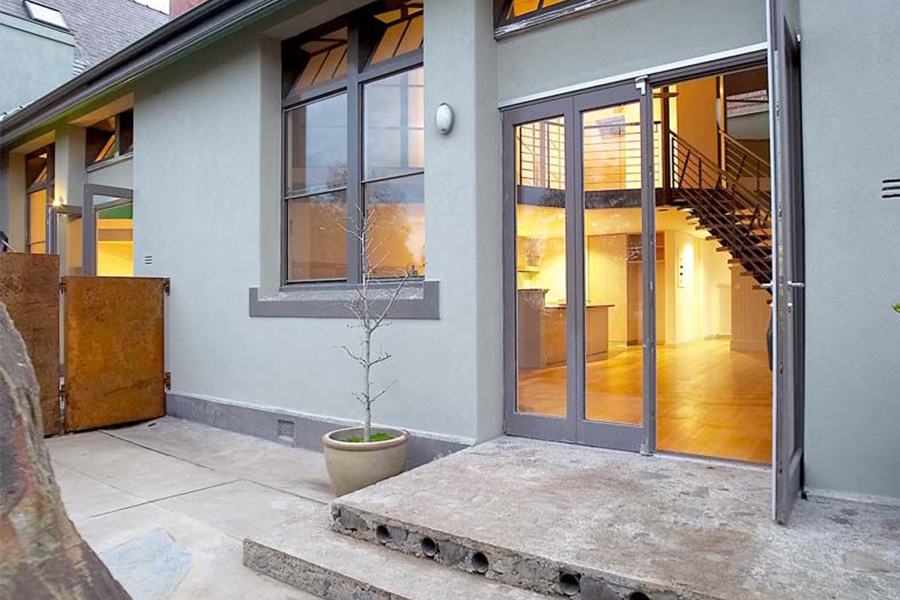

Bifold-doors-external-opening

Specifications

  • IV 78mm timber frame, triple glazed with 2x 12-16mm argon filled gap
  • IV 68mm timber frame, double glazed with 1x 14-20mm argon filled gap
  • Choice of glass combinations
  • German bi-fold hardware fittings, multi-point locking

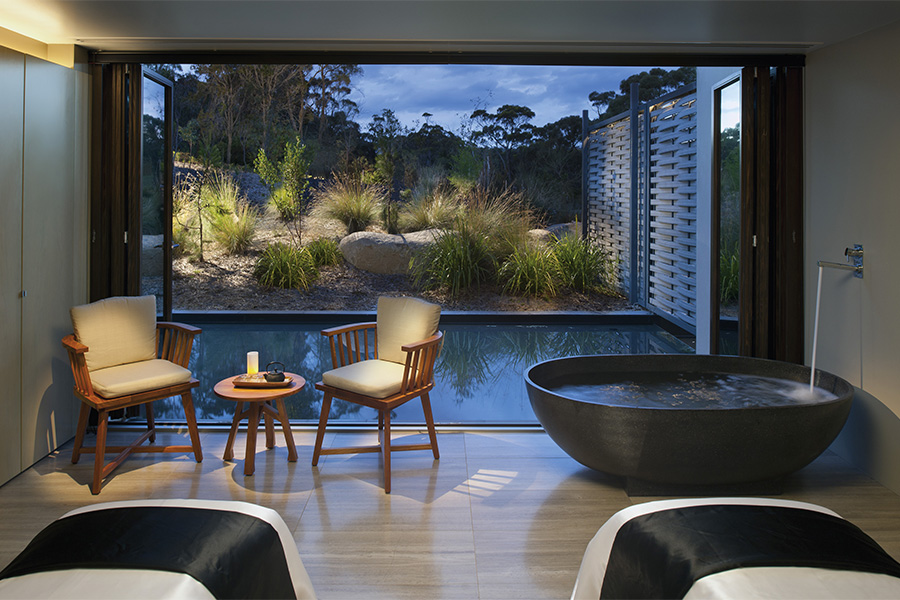

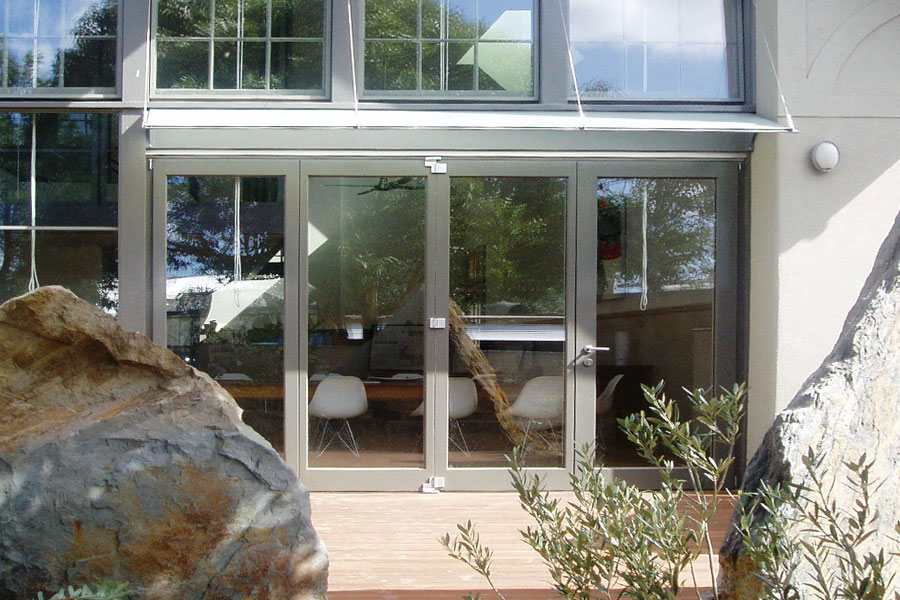

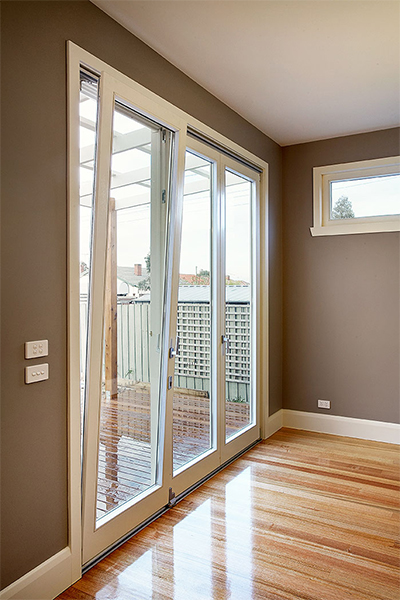

  • Inward opening with tilt function (depending on configuration), or outward opening on request
  • Custom made to many configurations
  • Low VOC spray-painted or stained in the colour of your choice
  • Seals for high energy efficiency and sound protection
  • Operated with a handle on every second door, no shoot bolts
  • Suited for low bushfire areas and Passive House

Size:

  • Width up to 10m (depending on height) or
  • Height up to 2.8m (depending on width)

WERS energy rating: U-value from a very low 1.1



Door Configurations / Opening Schemes

Energy efficient Bi-fold Doors are available in a variety of configurations / opening schemes:
